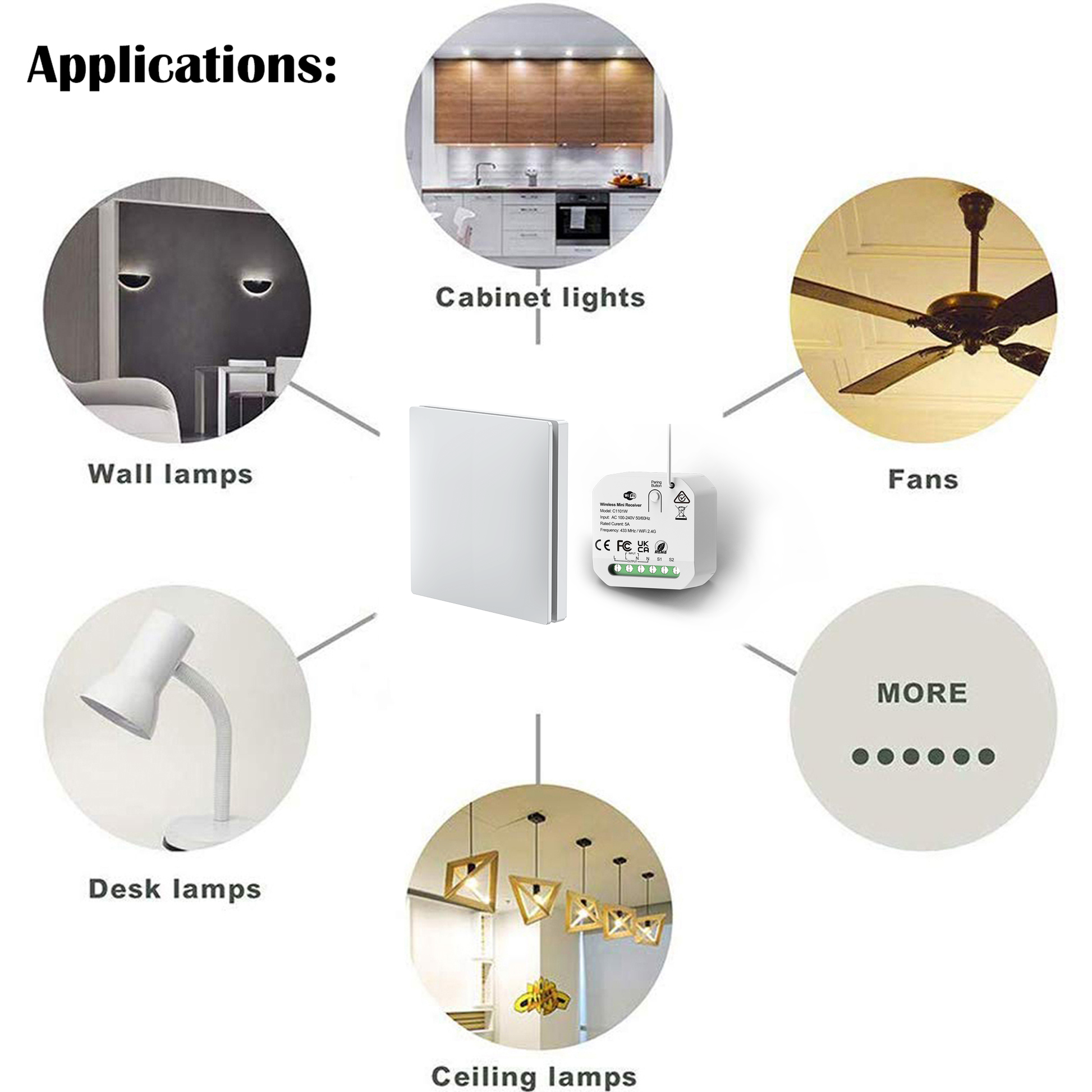

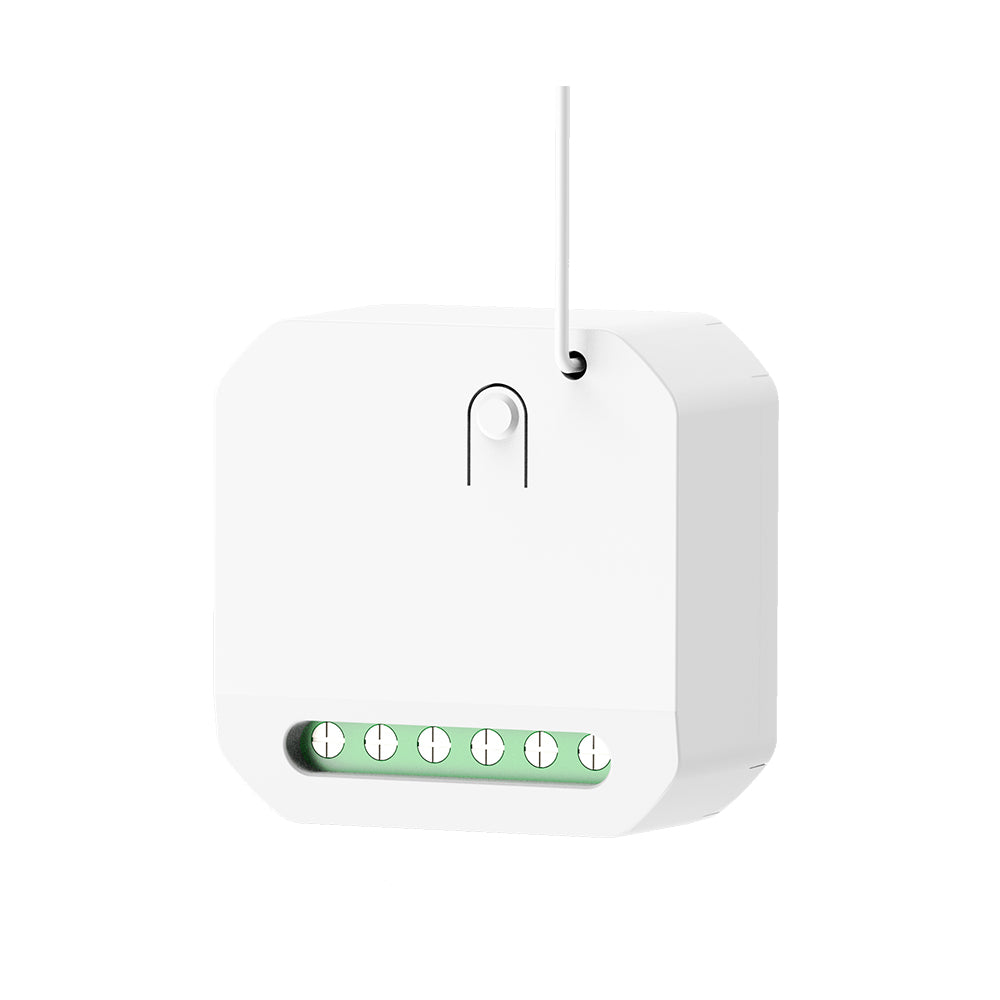

5A On/Off Mini receiving controller is perfect for residential use, offices, classrooms, conference rooms, remodels and retrofits.

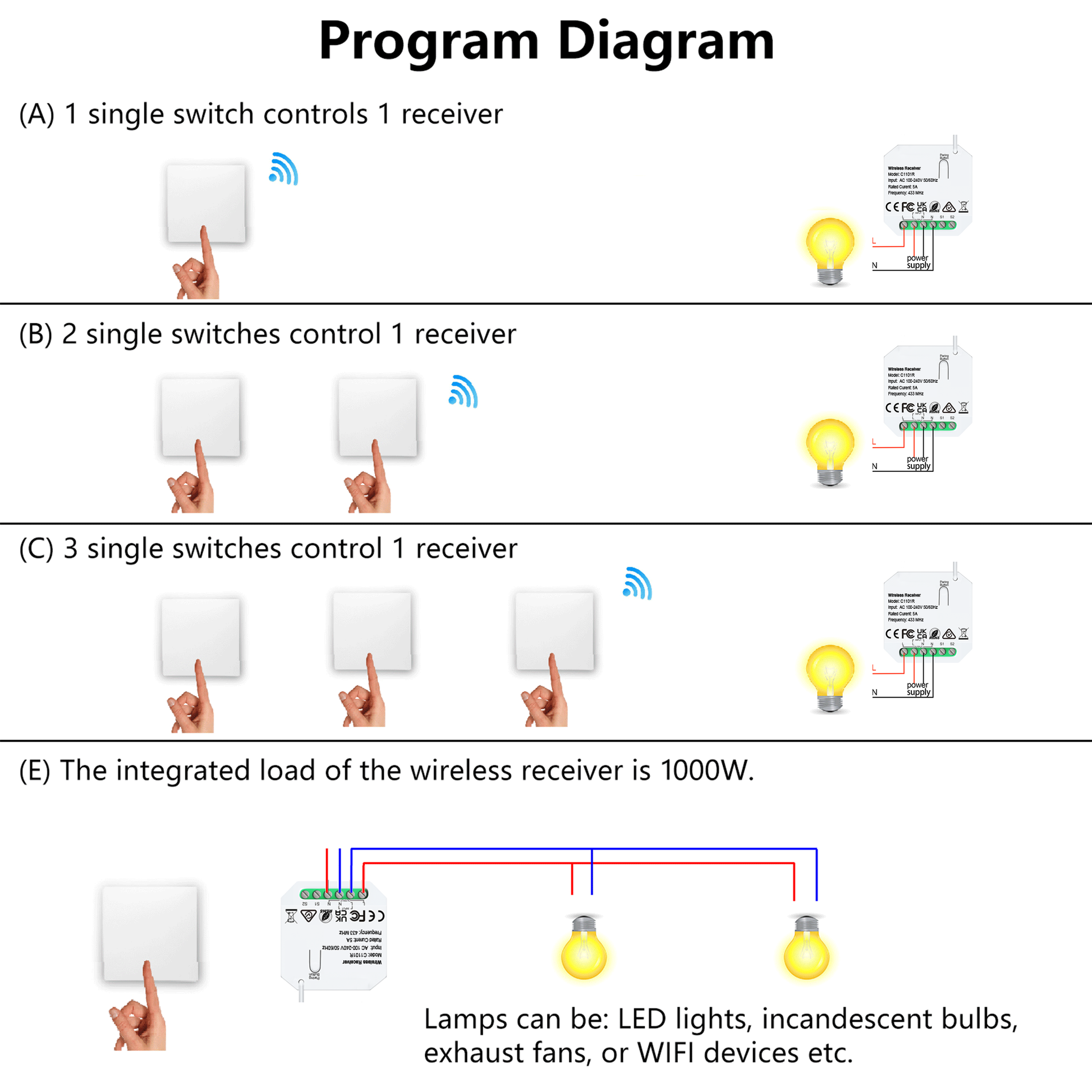

The mini receiver controller can be mounted in the ceiling, wall or behind the electrical socket. Wireless kinetic switch and traditional switch can be used at the same time to achieve dual or multiple control easily.
*To be used with models such as:
S301, S302, S303, S311, S312, S313, S311G, S312G or S313G*
Description:
• Works with kinetic switch for wireless lighting control
• Compatible with existing wired switch control
• 5A/1000W Load capacity
• Easy installation
• Simple pairing process
• One channel can work with up to 10 switch panels
Specifications:
Power Supply: AC 100-240V, 50/60Hz
Rated Current: 5A
Max Load :1000W
Outer Shell Material :PC V-0(fireproof)
Frequency: RF 433MHz
Range: 25m indoors, 80m outdoors
Working Temperature: -10℃ ~ +55℃

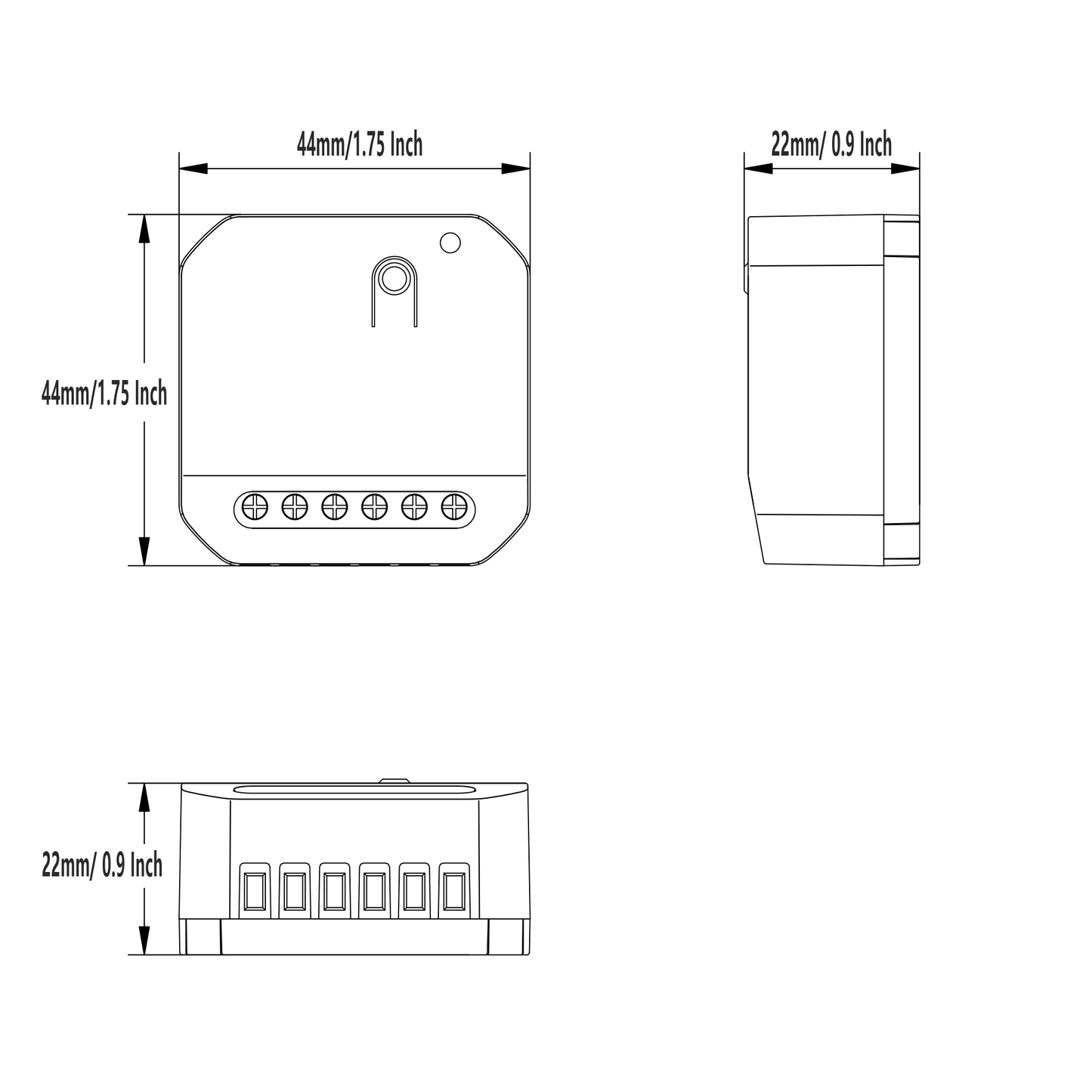

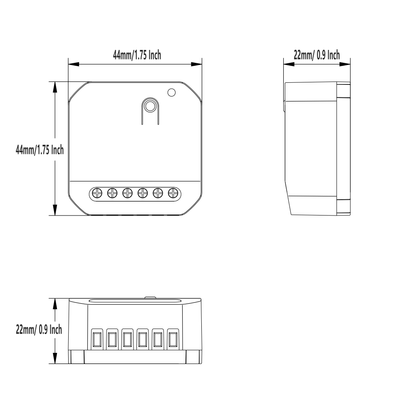

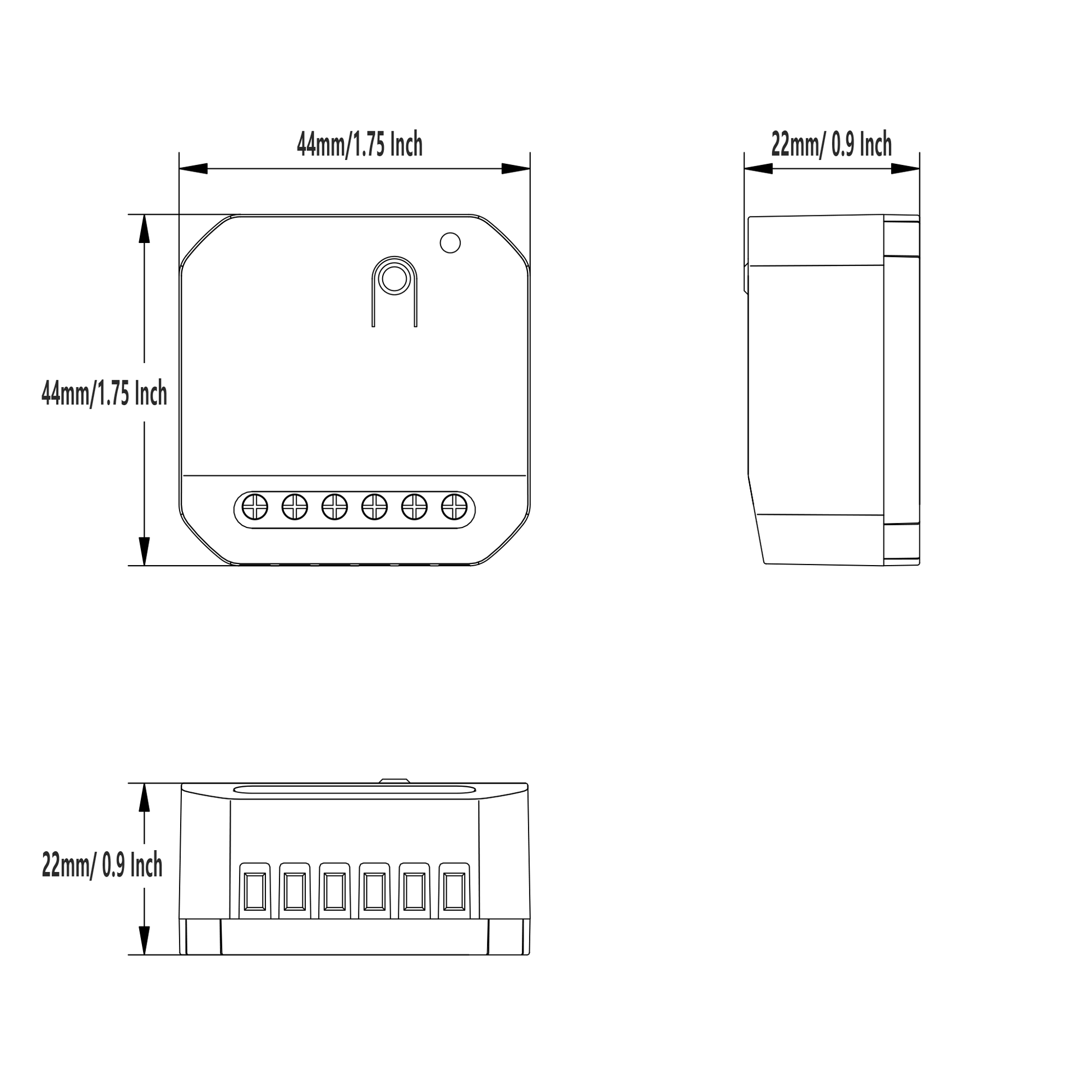

Dimensions: L44 x W44 x H22mm
Pairing Capacity :Max 10 wireless switches
