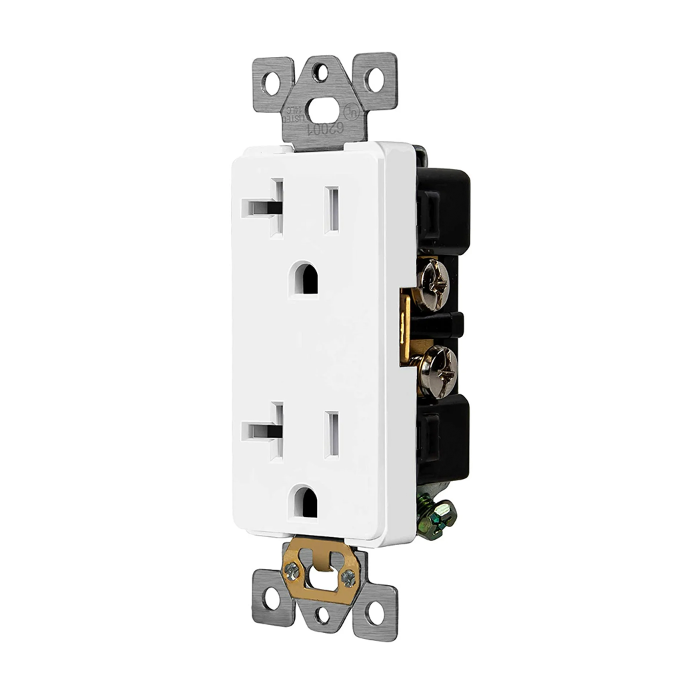

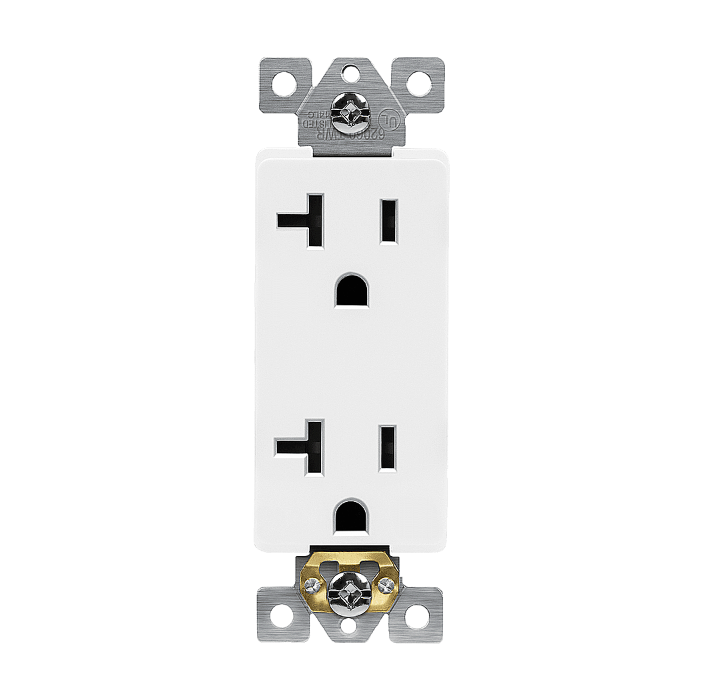

Residential Grade 20A Decora Receptacle 5-20R Glossy White Finish

Residential grade receptacles are rated for a variety of standard configurations. Each receptacle is equipped with break-off plaster ears and tabs to allow for easy alignment and 2-circuit conversion. All decorator receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room.

Features:

• 20A-125V 5-20R

• Made of thermoplastic material

• Tamper-resistant receptacle improves child safety

• Built in shutter prevents access by most non-rated/foreign objects

• Optional grounding with self-grounding clip or green terminal screw

• Break-off tabs for easy two-circuit conversion

• Push-in #14 AWG Cu solid wire for 20A branch circuit only

• Removable yoke tabs for ideal alignment

• Terminal screws backed out ready for wiring

• Combination Slot/Phillips head mounting and terminal screws ease installation

• Heavy-duty impact resistant thermoplastic construction for long service life in commercial applications

• Back wiring terminals accept both solid and stranded wire to ease installation

• 2-year warranty

Specifications:

Amperage: 20 Amp

Voltage: 125 VAC

NEMA: 5-20R

Termination: Rear Push In and Side

Material: Thermoplastic

Operating Temperature: -104° F to 167° F

Warranty: 2 Years
