IntegraSpec Spacers (ICF Webs / Core Spacers)

IntegraSpec Spacers / Webs

*PARA MÁS INFORMACIÓN SOBRE ESTE PRODUCTO LLAMAR: 787-653-2424*

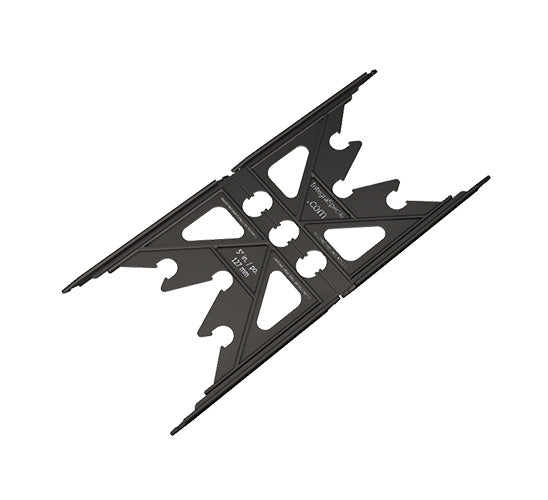

IntegraSpacers are designed to define and maintain the concrete core width while providing structural support and rebar placement within the wall system.

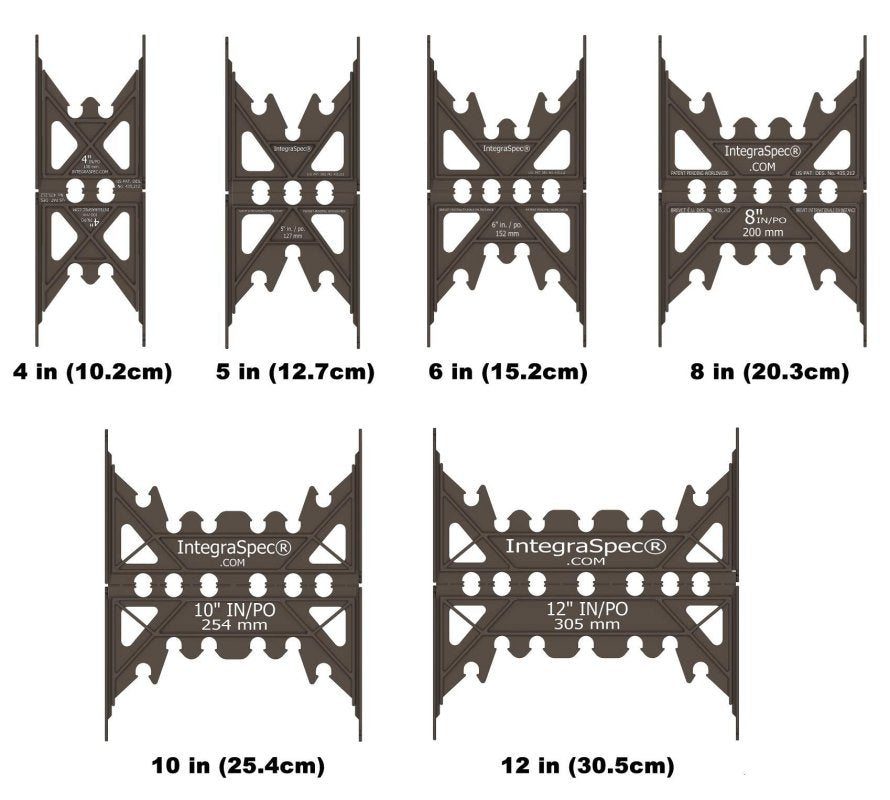

Available sizes:

• (4" / 5" / 6" / 8" / 10" / 12")
• (102 mm / 127 mm / 152 mm / 203 mm / 254 mm / 305 mm)

Key Capabilities:

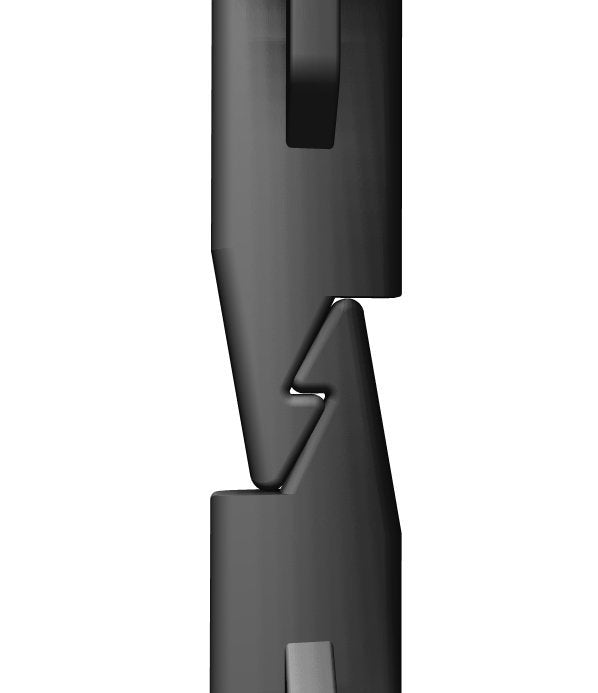

• Stack and interlock vertically during wall assembly
• Can be split into two equal halves for:
  • Variable wall heights
  • Openings and lintels
  • Increased rebar placement flexibility
• Compatible with Integra H-Clips to create wider concrete wall requirements :
  • Commercial wall applications
  • Footings, pilasters and columns

-------------------------------------------------------------------------------

Specifications

Material

• High Impact Polystyrene (HIPS) – recycled material


Key Features

• Bi-directional and reversible (no fixed orientation)
• Integrated rebar holders for secure placement

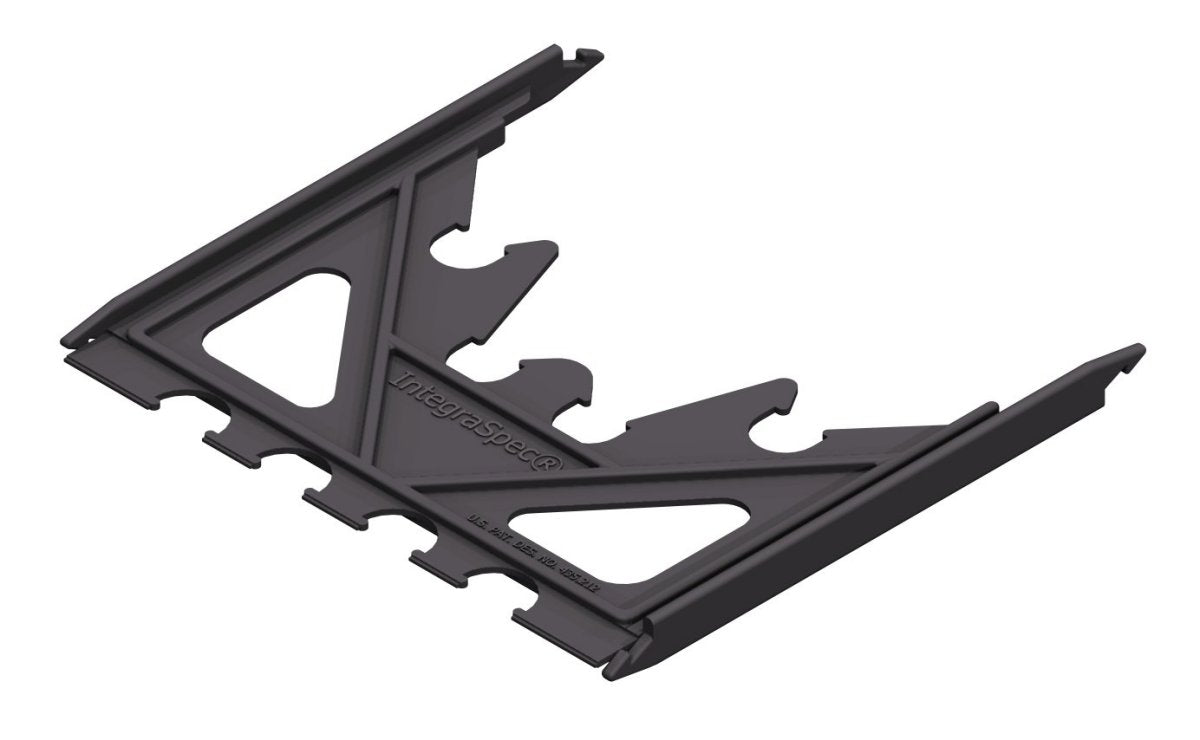

• Breakable into two equal halves
• Can be cut for custom applications
• Designed to slide into panel inserts and interlock vertically

------------------------------------------------------------------

Installation Details

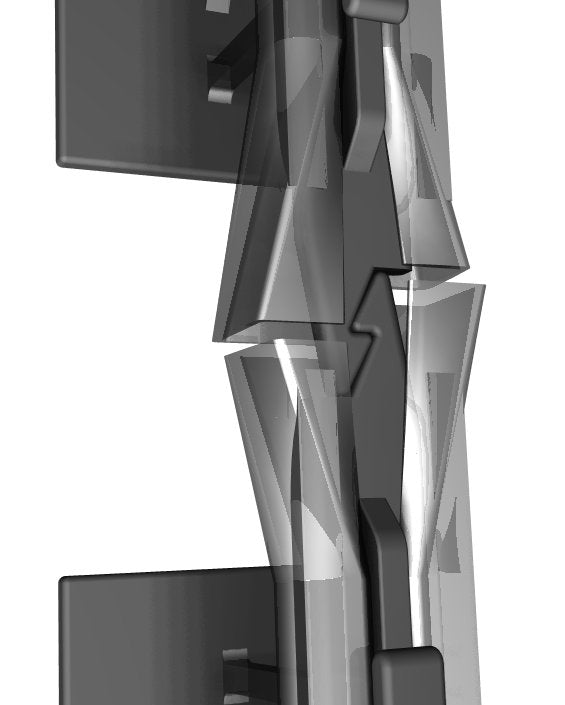

• • Interlocking system: slides into panel inserts and stacks securely
  • Fastening studs: 1⅝" (4.13 cm) wide, located inside bucks
