IntegraSpec Standard Panel

Standard Panels

*PARA MÁS INFORMACIÓN SOBRE ESTE PRODUCTO LLAMAR: 787-653-2424*

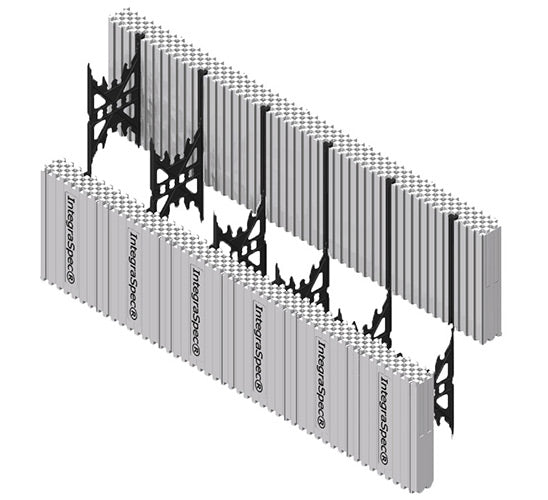

IntegraSpec Standard Panels are fully universal and independent, with no fixed orientation. Their multi-directional interlocking capability allows panels to be installed in any configuration, minimizing waste—even when cut pieces are used.

A single panel type is used for all concrete core sizes and applications, including walls, columns, and footings. Panels can also be mitered to create corners and curved structures.

Each panel includes:

• Embedded vertical fastening studs every 8 inches (203 mm) on center
• Slide-in web/spacer system for fast installation around rebar and steel columns
• Flexibility to build one side of a wall first for easier reinforcement placement
• Ability to install panels in alternating orientations (up/down, left/right) on opposite sides

----------------------------------------------------------------------

Specifications

Typical Panel Dimensions

• 48" L × 2.5" W × 12.25" H (interlocked)
• 122 cm × 6.35 cm × 31.12 cm
  Note: Dimensions may vary slightly due to EPS shrinkage (100% recyclable material).

Concrete Core Options

• 4" / 5" / 6" / 8" / 10" / 12"
• (10.2 cm / 12.7 cm / 15.2 cm / 20.3 cm / 25.4 cm / 30.5 cm)

Total Wall Width (Panels + Core)

• 9" / 10" / 11" / 13" / 15" / 17"
• (22.9 cm / 25.4 cm / 27.9 cm / 33.0 cm / 38.1 cm / 43.2 cm)

Materials

• Foam Panels: Flame-retardant Type 2 EPS, density 1.5 pcf (24.14 kg/m³)
• Plastic Inserts: High Impact Polystyrene (HIPS), 100% recycled

--------------------------------------------------------------------------------

Key Features

• Patented bi-directional, reversible design (no fixed sides)
• Friction + mechanical interlocking system
• Vertical fastening studs: 1⅝" wide every 8" OC
• Exterior surface area per panel: 4.08 ft² (0.38 m²)
