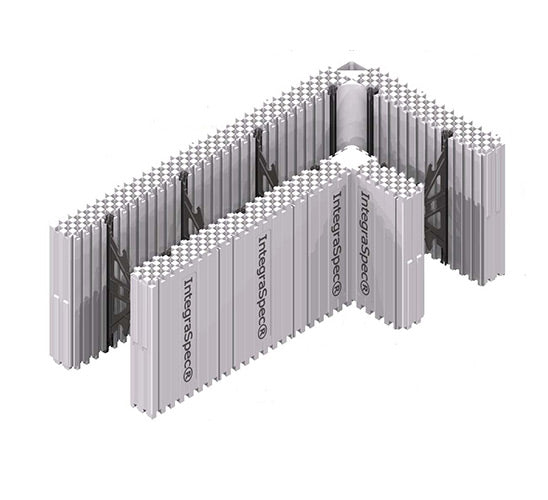

IntegraSpec 90° Corner Unit

90° Corner Set (6” / 15.2 cm)

*PARA MÁS INFORMACIÓN SOBRE ESTE PRODUCTO LLAMAR: 787-653-2424*

IntegraSpec corner units are pre-molded and fully reversible, with no fixed orientation. The interior and exterior 90° panels are independent from each other and can be installed in multiple configurations (up/down or reversed), offering greater design and construction flexibility.

• Exterior corner panels can be used to form pilasters
• Interior panels can be used to create T-walls
• Flexible assembly allows for efficient adaptation to complex layouts


-------------------------------------------------------------------------------

Specifications

Exterior Panel Dimensions

• 32.5" L × 16.5" W × 12.25" H (interlocked)
• 82.6 cm × 41.9 cm × 31.12 cm
  Note: Dimensions may vary slightly due to EPS shrinkage (100% recyclable).

Interior Panel Dimensions

• 21.5" L × 5.5" W × 12.25" H (interlocked)
• 54.6 cm × 14 cm × 31.12 cm
  Note: Dimensions may vary slightly due to EPS shrinkage (100% recyclable).

Concrete Volume per Corner Unit

• 0.056 yd³ (0.043 m³)

Materials

• Foam Panels: Flame-retardant Type 2 EPS, density 1.5 pcf (24.14 kg/m³)
• Plastic Inserts: High Impact Polystyrene (HIPS), recycled material

----------------------------------------------------------------------------

Key Features

• Patented bi-directional, reversible design (no fixed sides)
• Friction + mechanical interlocking system
• Vertical fastening studs: 1⅝" wide every 8" (20 cm) OC
• Exterior surface area per unit: 4.16 ft² (0.40 m²)
