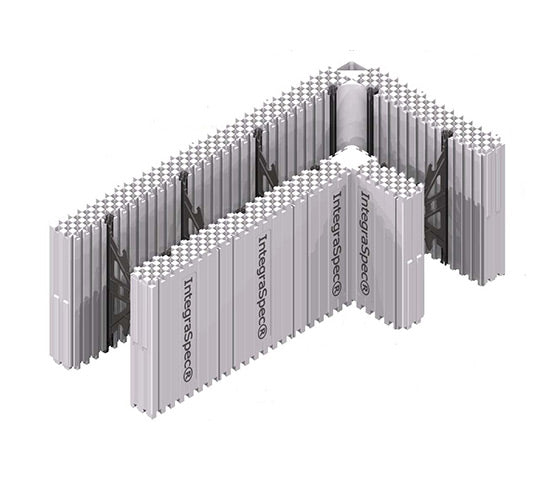

IntegraSpec 90° Commercial Corner Unit

Commercial 90° Corner Set (8” / 20.3 cm)

*PARA MÁS INFORMACIÓN SOBRE ESTE PRODUCTO LLAMAR: 787-653-2424*

IntegraSpec commercial 90° corner units are pre-molded and fully reversible, with no fixed orientation. The interior and exterior corner panels are independent and can be assembled in multiple configurations (up/down or reversed), allowing greater flexibility in design and installation.

• Exterior panels can be used to form pilasters
• Interior panels can be used to create T-walls
• Ideal for larger-scale or commercial wall systems requiring an 8” concrete core


------------------------------------------------------------------------------

Specifications

Exterior Panel Dimensions

• 34.5" L × 18.5" W × 12.25" H (interlocked)
• 87.6 cm × 47 cm × 31.12 cm
  Note: Dimensions may vary slightly due to EPS shrinkage (100% recyclable).

Interior Panel Dimensions

• 21.5" L × 5.5" W × 12.25" H (interlocked)
• 54.6 cm × 14 cm × 31.12 cm
  Note: Dimensions may vary slightly due to EPS shrinkage (100% recyclable).

Concrete Volume per Corner Unit

• 0.067 yd³ (0.051 m³)


Materials

• Foam Panels: Flame-retardant Type 2 EPS, density 1.5 pcf (24.14 kg/m³)
• Plastic Inserts: High Impact Polystyrene (HIPS), recycled material


----------------------------------------------------------------------

Key Features

• Patented bi-directional, reversible design (no fixed sides)
• Friction + mechanical interlocking system
• Vertical fastening studs: 1⅝" wide every 8" (20 cm) OC
• Exterior surface area per unit: 4.51 ft² (0.42 m²)
