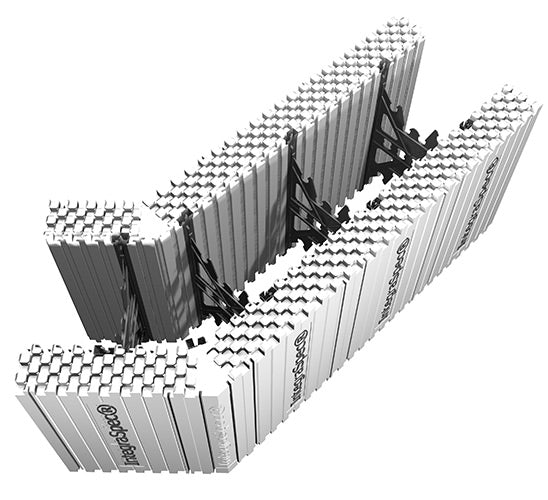

IntegraSpec 45° Corner Unit

45° Corner Panels (6” / 15.2 cm)

*PARA MÁS INFORMACIÓN SOBRE ESTE PRODUCTO LLAMAR: 787-653-2424*

IntegraSpec 45° corner panels are pre-molded and available as separate interior and exterior units. Designed for a 6” (152 mm) concrete core, these panels are fully reversible with no fixed orientation—matching the flexibility of the 90° corner system.

• Interior and exterior panels can be ordered separately
• Fully reversible (no top, bottom, left, or right side)
• Compatible with various IntegraSpec wall/core configurations
• Ideal for angled walls, architectural features, and custom layouts

-------------------------------------------------------------------------

Specifications

Exterior Panel Dimensions

• 25.56" L × 9.56" W × 12.25" H (interlocked)
• 64.92 cm × 24.28 cm × 31.12 cm
  Note: Dimensions may vary slightly due to EPS shrinkage (100% recyclable).

Interior Panel Dimensions

• 21.0" L × 5.0" W × 12.25" H (interlocked)
• 53.34 cm × 12.7 cm × 31.12 cm
  Note: Dimensions may vary slightly due to EPS shrinkage (100% recyclable).

Concrete Volume per Corner Unit

• 0.048 yd³ (0.036 m³)

Materials

• Foam Panels: Flame-retardant Type 2 EPS, density 1.5 pcf (24.14 kg/m³)
• Plastic Inserts: High Impact Polystyrene (HIPS), recycled material

------------------------------------------------------------------------

Key Features

• Patented bi-directional, reversible design (no fixed sides)
• Friction + mechanical interlocking system
• Vertical fastening studs: 1⅝" wide every 8" (20 cm) OC
• Additional fastening point at exterior corner
• Exterior surface area: 2.99 ft² (0.28 m²)
• Interior surface area: 2.21 ft² (0.20 m²)
