Features:

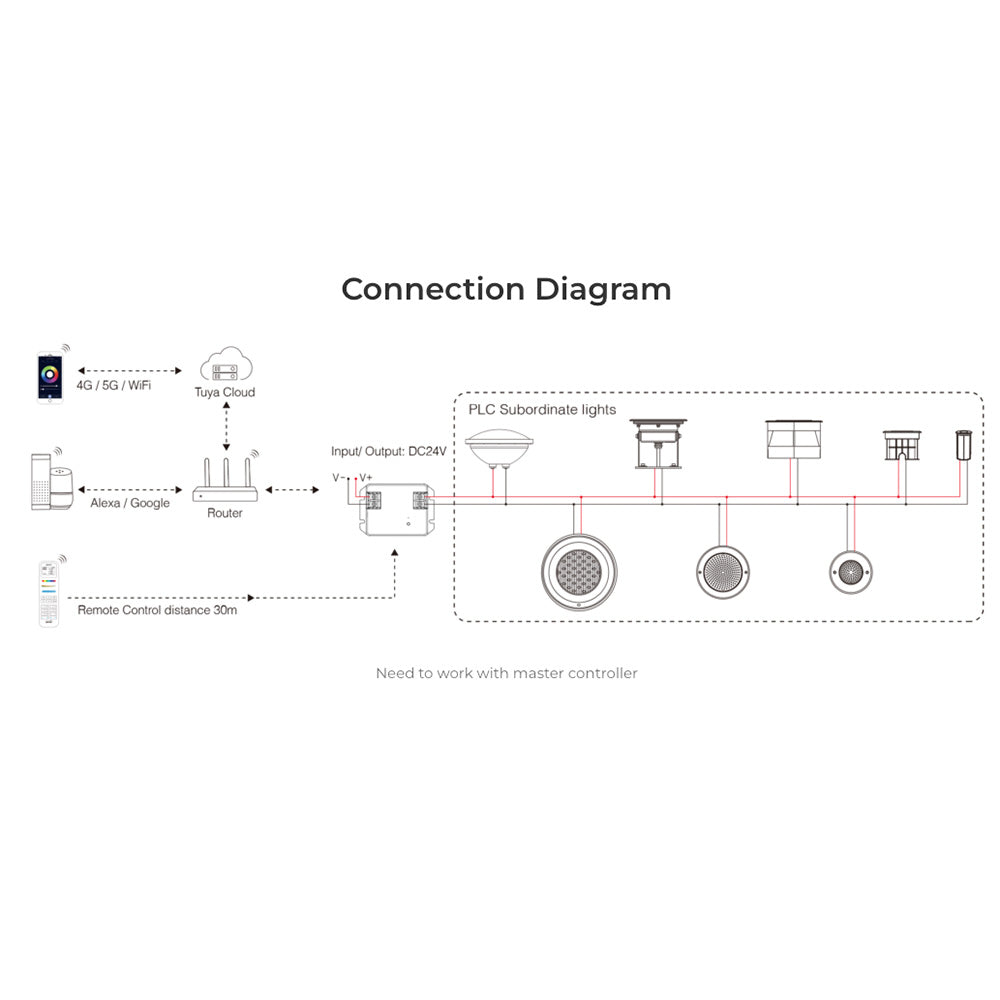

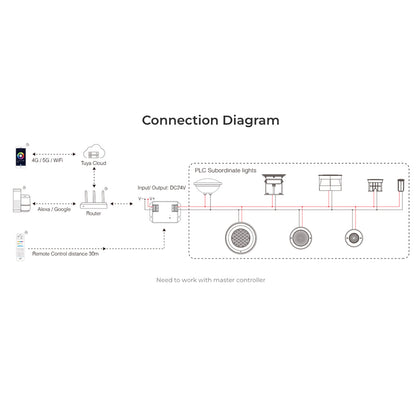

Designed by PLC control solution, simple wiring diagram.
Working with master controller control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc, support 2.4G remote control as well.
Parameters:
- 16 million colors for selection, dimmable for rgb& cct& brightness
- Working with master controller to adjust rgb& cct& brightness& saturation
- 304 stainless steel
- IP68 waterproof
Details:
Input Voltage: DC24V
Power: 5W（R, G, B: 1.5W, CW: 3.5W, WW: 3.5W）
CRI: >80
Color Temperature: 2700K~6500K
Luminous Flux: 260LM
Luminous Efficiency: 75LM/W
Beam Angle: 30 °
IP Rate: IP68
Working Temperature: -10~40℃
EMC Standard (EMC): ETSI EN301 489-1 v 2.2.3 (2019-11)
ETSI EN 301 489-3 v 2.3.2 (2023-01)
Safety Standard (LVD): EN 61347-1：2015+A1: 2021
EN 61347-2-11: 2001+A1:2019
Radio Equipment (RED): ETSI EN 300 440 V2.2.1
Certification: CE, EMC, LVD, RED
