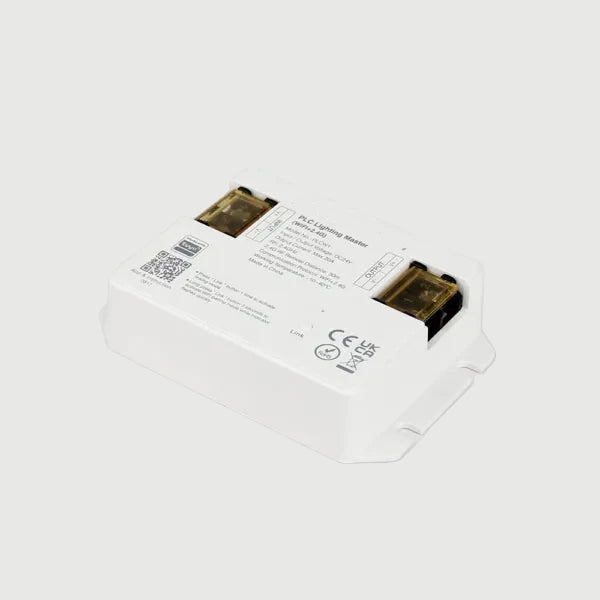

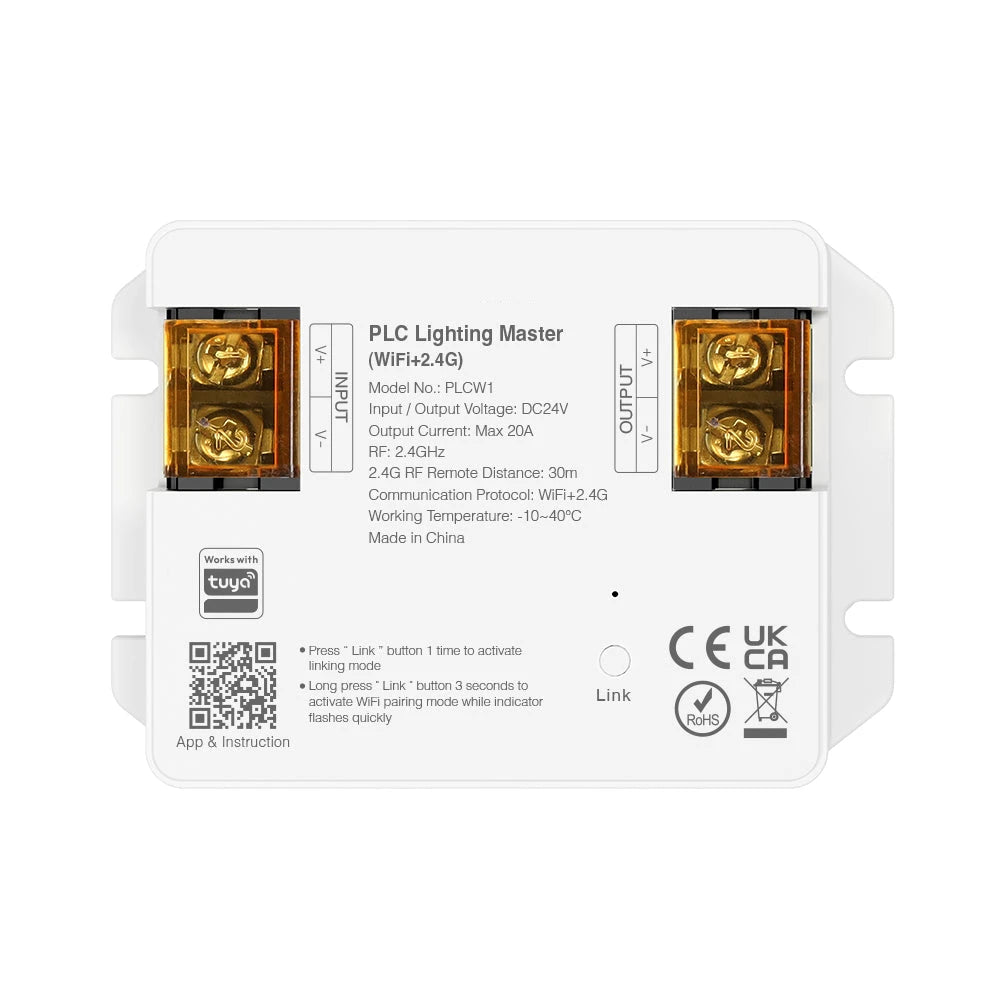

PLC LIGHTING MASTER (WiFI+2.4G)

Features:

Designed by PLC control solution, simple wiring diagram and work with wifi+2.4G wireless technology to achieve smart control.

TUYA SMART APP remote control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc, support 2.4G remote control as well.

Parameters:

•  16 million colors for selection, dimmable for rgb &cct& brightness
• One controller max paired with 12pcs 2.4G RF remote ( control distance 30m)
• Built-in 18 dynamic mode with jumping, gradually changing ( only for 2.4G remote control)
•  Auto-forwarding: Automatically forward the remote control signal to  another controller, making the remote control distance infinite
• Automatic synchronization: The same dynamic mode is automatically synchronized, so that the mode is always consistent
• Have DND function, usually used in power failure area and save power
• Support TUYA SMART app control
• Support third party voice control like Alexa, Google assistant,Yandex Alice, Tmall Genie,Baidu and Xiaomi

Details:

Input Voltage:  DC24V
Total Output: Max 20A
Protocol: WiFi+2.4GHz
Control Distance: 30M
IP Rate: IP20
Working Temperature: -10~40℃
WIFI Standard：IEEE 802.11b/g/n 2.4GHz
EMC Standard (EMC): ETSI EN301 489-1 v 2.2.3 (2019-11)
ETSI EN 301 489-3 v 2.3.2 (2023-01)
Safety Standard (LVD): EN 61347-1：2015+A1: 2021
EN 61347-2-11: 2001+A1:2019
Radio Equipment (RED): ETSI EN 300 440 V2.2.1
Certification: CE, EMC, RED
